Product Description:

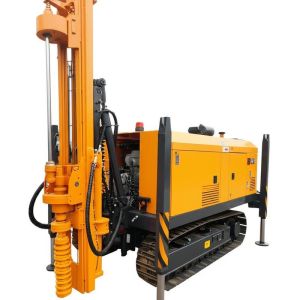

The Crawler Water Well Drilling Rig is a robust and efficient machine designed for various drilling applications, especially in challenging terrains. With a weight of 12500 KG, this rig is equipped with a powerful 132kW engine, ensuring reliable performance in demanding conditions.

Measuring 6.73*2.1*2.63m, the Crawler Water Well Drilling Rig is compact yet provides ample space for essential drilling components. The compact design coupled with its crawler feature enables easy maneuverability across different types of terrain, making it an ideal choice for remote drilling sites.

One of the standout features of this drilling rig is its drilling method - Reverse Circulation. This method allows for efficient drilling by ensuring that cuttings are brought to the surface through the drill pipe, minimizing the risk of hole collapse and maximizing drilling speed.

The Crawler Water Well Drilling Rig is equipped with jacks with a stroke of 1.6m, providing stability and support during the drilling process. The jacks play a crucial role in maintaining the rig's position and balance, especially on uneven ground, enhancing safety and precision during drilling operations.

Whether you are drilling for water wells, geothermal applications, or mineral exploration, the Crawler Water Well Drilling Rig offers versatility and reliability to meet your drilling needs. Its robust construction, powerful engine, and innovative features make it a valuable asset for drilling contractors and companies operating in challenging environments.

Invest in the Crawler Water Well Drilling Rig to experience efficient drilling operations, enhanced productivity, and the ability to tackle complex drilling projects with ease. Trust in this reliable and high-performance rig to deliver results and exceed your expectations in the field.

Features:

• Product Name: Crawler Water Well Drilling Rig
• Jacks stroke: 1.6m
• Drilling efficiency: 10-35m/h
• Fast feeding speed: 55m/min
• Drilling Method: Reverse Circulation
• Dimension: 6.73*2.1*2.63m

Technical Parameters:

Applications:

The Shandong Zhengyuan SL600S top drive water well drilling rig, equipped with a 132kW power unit and a powerful 12000N·m torque power head, combines strong power with high stability. It can drill up to a maximum depth of 600 meters and is suitable for various drilling techniques. The crawler chassis and high outriggers design enable it to handle complex terrains with ease. Whether it is for medium and deep water well drilling or engineering hole construction, it can complete the tasks efficiently. It is an outstanding choice in terms of cost performance among 12-ton class drilling rigs.

Customization:

Product Customization Services for the Crawler Water Well Drilling Rig:

Brand Name: Shandong Zhengyuan

Model Number: SL600S

Place Of Origin: Shandong Province, China

Certification: ISO

Minimum Order Quantity: 1 SET

Price: $45,000

Packaging Details: ACCORDING TO CUSTOMER

Delivery Time: 20 DAYS

Payment Terms: 30%TT FOR DEPOSIT

Supply Ability: 30 SETS / MONTH

Drilling efficiency: 10-35m/h

Drilling diameter: 105-400MM

Lifting force: 35T

Dimension: 6.73*2.1*2.63m

Power: 132kW

Support and Services:

The Crawler Water Well Drilling Rig product comes with comprehensive product technical support and services to ensure optimal performance and reliability. Our team of skilled technicians is available to assist with installation, troubleshooting, and maintenance of the equipment. Additionally, we offer training programs to help operators maximize the efficiency and lifespan of the rig. Our goal is to provide top-notch support to our customers and ensure smooth operations of the drilling rig.
